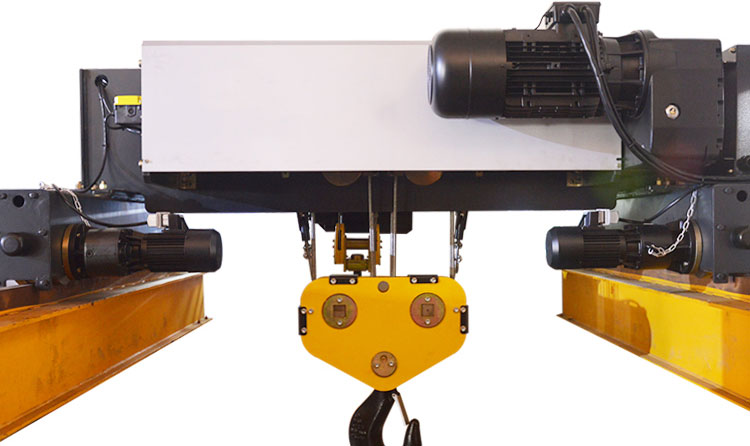

Double-girder wire rope electric hoist is suitable for use with double-girder bridge and gantry cranes. It is a high standard and good quality lifting tools, which could work well and efficiently.

Electric machine hoist belongs to hoisting equipment to meet the need of modernization. The kind of hoist machine is widely used in many construction site for its compact structure and strong universality. Machine hoists can use alone to be fixed in a pillar, or go with large crane as trolley to transport heavy loads along the track of cranes.

Product Features

1. Meeting the working level standards beyond 2m or 3m (equivalent to M5 or M6 working level standards) can ensure the long-term service life even under heavy working environment.

2. Three stage transmission, in-volute helical gear, oil bath cast aluminum gearbox system. The finishing gear set works in the leak-proof cast aluminum gear box. The shell design of the transmission gear box is easy to dissipate heat through air, and is convenient for maintenance in case of failure. It provides low headroom design specifications while ensuring large lifting capacity, saving your costs, and improving the use efficiency. The lifting motor is of dual speed adjustment type, and the ratio of raising low speed can reach 6:1, It can meet your requirements for positioning, high-speed operation and fast takeoff and landing.

3. The steel wire rope reel adopts deep groove design and is equipped with a high-strength steel wire rope guide mechanism as standard to ensure a more compact and regular rope arrangement, ensure lifting safety and prolong the service life of the steel wire rope.

4. The braking performance of high-strength DC disc brake can reach twice of the nominal torque, so as to implement fast and active braking and locking functions.

5. The traction wheels made of alloy steel can be used on wide rails or even curved rails. Both sides of the host are equipped with drive gears to provide more active driving and guiding functions.

6. All electrical control parts adopt safe IP54 protection grade, and you can easily access the parts you need to check when necessary.

7. The high-strength metal support structure is safe and reliable to ensure the stable operation of the host.

8. The trolley mechanism can be easily adjusted to adapt to the width of different tracks.

9. Within the range of high-end promotion, the upper and lower limit positions can be set at will to meet the extensive use requirements.
