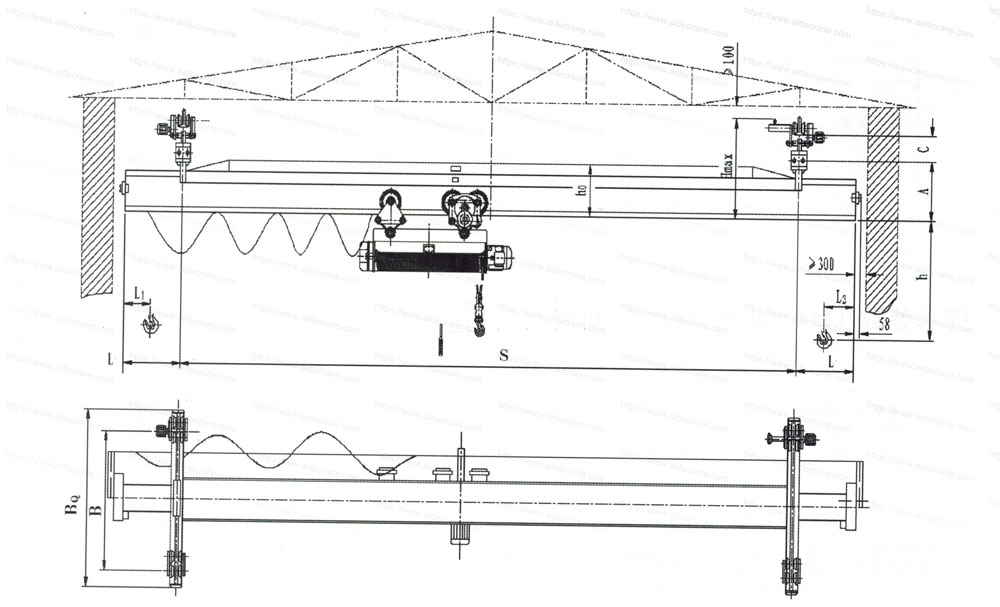

This type of single beam crane is applicable in factories and warehouses where the height from the rail surface to the lower edge of the truss is equal to or shorter than 500 mm. The trolley is equipped with a specific electric hoist that features flexible structure and reliable and safe operation. If clients have special requirements on the span, our company is able to carry out design and production of the overhead crane equipment.

This overhead crane has a super low Headroom type design, which greatly increase the effective lifting height. It is Europe suspension style single girder bridge electric overhead traveling crane with ABM motorized electric hoist. which including 2 ton 3.2 ton 5 ton 8 ton 10 ton 12.5 ton and so on.

Application

It is widely used in machinery manufacturing, metallurgy, petroleum, petrifaction, port, railway, civil aviation, food, paper making, construction, electronics industries workshop, warehouse and other material handling situations, esp. where needs precise positioning, large components precise assembly situations, etc.

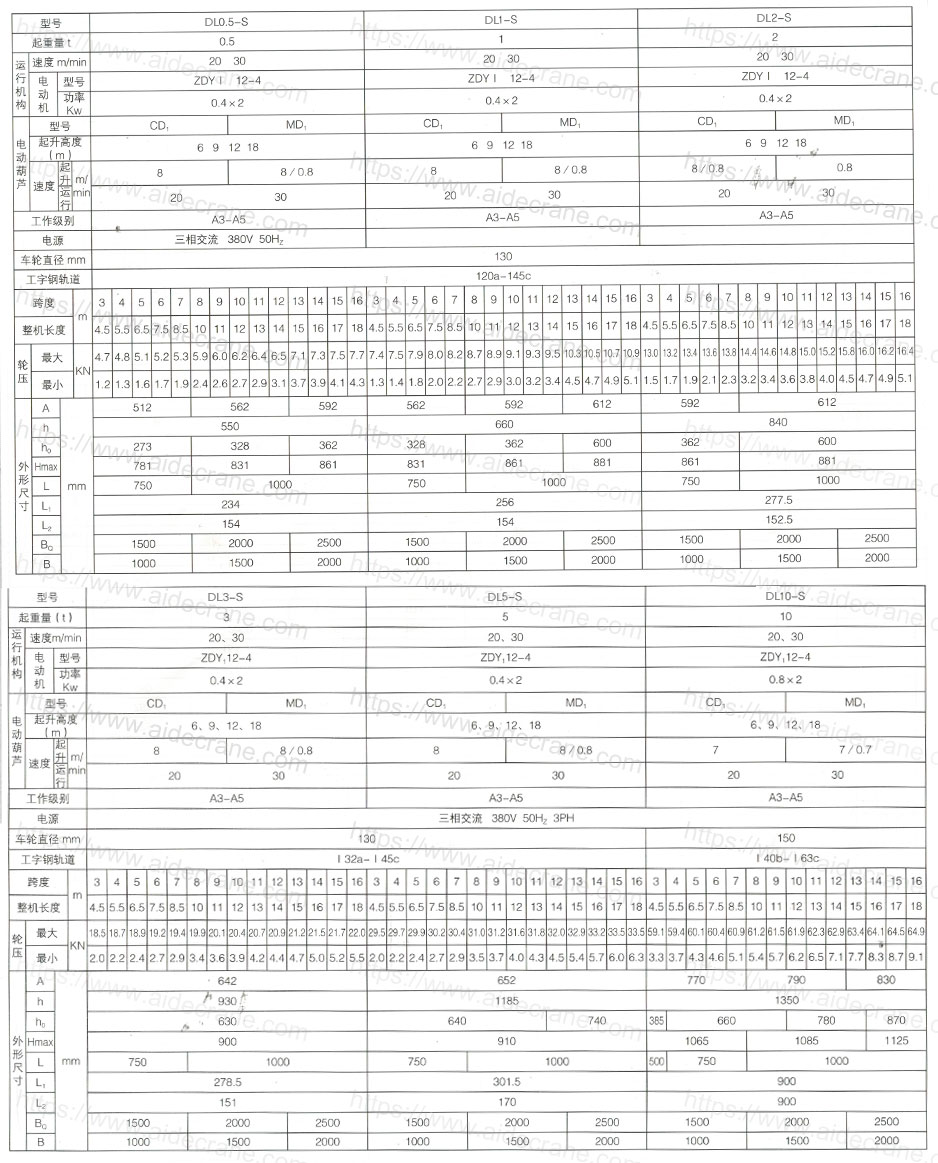

Parameters
