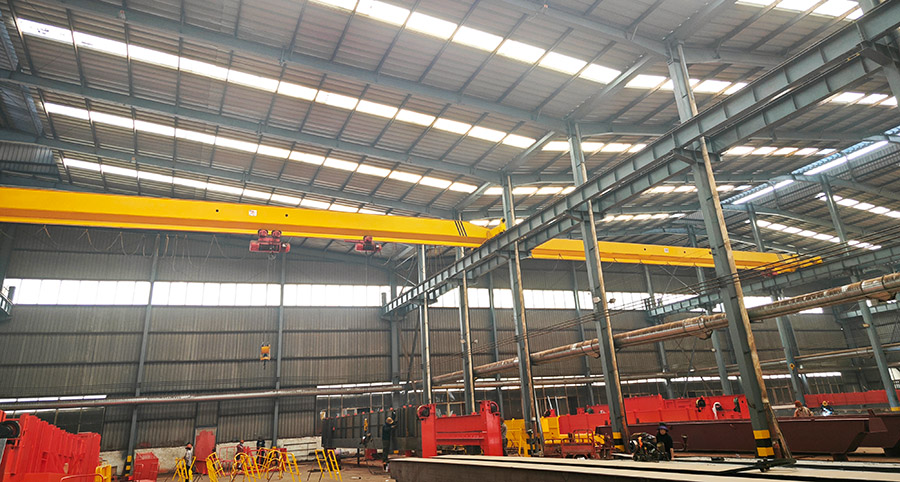

10 ton single girder overhead crane, as the name suggests, is a heavy lifting equipment designed for efficient and safe material handling in industrial environments. This type of crane features a single bridge girder that spans across two parallel runways, making it an ideal solution for factories, warehouses, workshops, or any facility where there's a need for frequent and reliable lifting operations.

The crane primarily consists of four main components: the bridge girder, trolley, electric hoist, and supporting runway system. The bridge girder is the central structural element, typically made from high-strength steel to ensure stability and durability under heavy loads. It carries the trolley which runs along its length, allowing for crosswise movement.

The trolley houses the electric wire rope hoist which can lift and lower loads up to 10 metric tons with precision and control. The hoist mechanism is equipped with advanced safety features such as overload protection and emergency stop buttons to ensure safe operation at all times.

The overhead crane operates on a runway system that is either embedded in the building's structure or mounted on freestanding support columns. This allows the crane to traverse the entire length of the workspace, providing maximum coverage and versatility.

In terms of functionality, the 10 ton single girder overhead crane offers smooth and silent operation due to its advanced drive technology. Its modular design facilitates easy installation, maintenance, and future upgrades. Additionally, these cranes often come with variable speed controls, allowing operators to adjust the speed according to specific load requirements, thus improving productivity and efficiency.

Product Parameters

LD Series Single Girder Overhead Crane
The parameters are standard. Customized solutions and designs are provided according to your actual needs.
Working Class	A3,A4
Capacity(t)	10
Span(m)	3-25
Lifting Height(m)	3-20
Lifting Speed(m/min)	0.33-8, single or dual speed
Trolley Travelling Speed(m/min)	2-30, single or dual speed
Crane Travelling Speed(m/min)	2-30, single or dual speed
Control Method	ground or cab control
Power Supply	380v 50hz 3p or customized
Temperature(℃)	-20-60
Protection Grade	IP44-65

Features

1. Light structure, easy installation and maintenance;

2. Reasonable structure, strong bearing capacity;

3. Low noise, soft starting and stopping;

4. Safe and reliable operation;

5. Low cost maintenance, long working life;

We have over 30 years experience in overhead crane manufacturing.

For more information, please feel free to contact us anytime. Our professional team is ready to serve you.
