Manual Operational Single Beam Crane

Overhead Bridge Cranes

Lifting weight : 1-10 ton

Lifting height : 3-10 meters

Traveing speed : 4.3-5.2 m/min

Width of track : 37-51

Manual single-girder cranes are used in warehouses, workshops or equipment maintenance places without power supply that do not have a large amount of handling and do not pay attention to efficiency and speed. The working environment temperature of this product is not lower than -25℃.

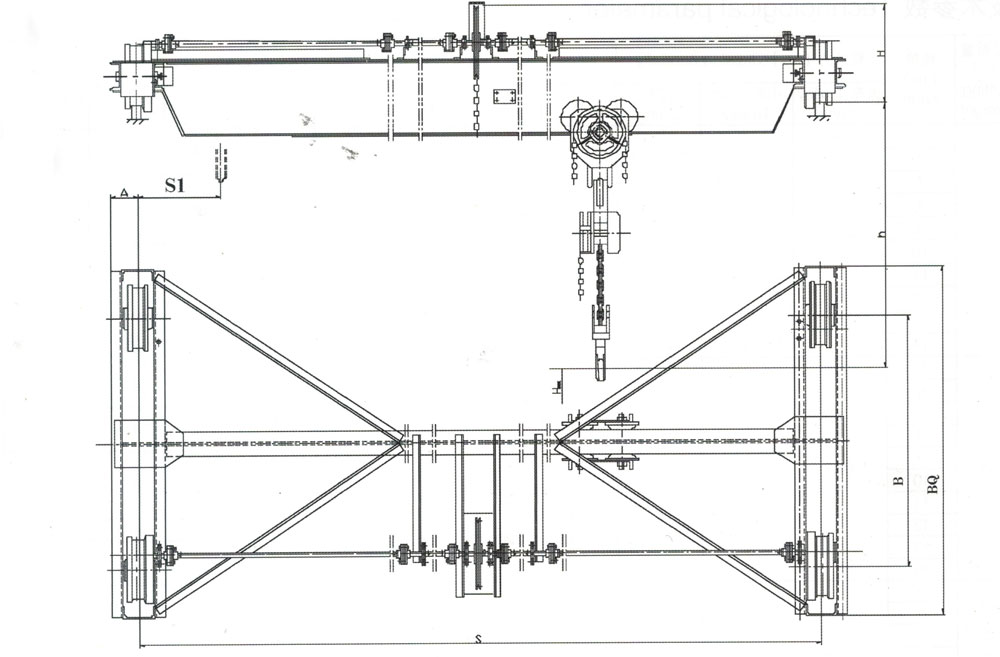

Here is the standard design drawing of single beam bridge crane. It is generally equipped with one electric hoist and one main beam, simple but solid structure, which could perform lifting tasks effectively.

We could offer customized design service for our clients based on the actual working conditions. Professional design and service teams are always doing the best to meet all needs.

crane

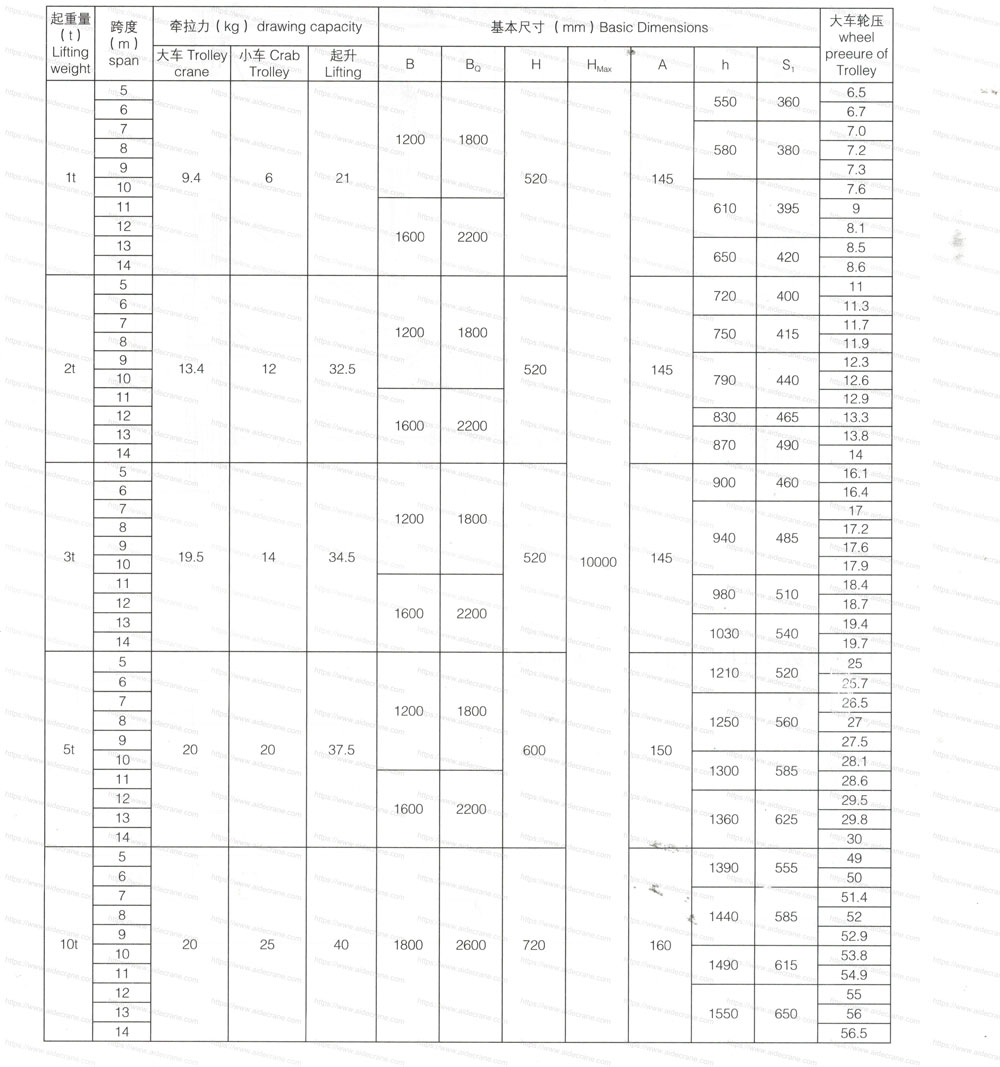

Product parameters

Lifting weight (t)		1	2	3	5	10
Lifting height (m)		3~10
Working class		A1-A3 (LIGHT)
Traveling speed (m/min)	Trolley	5.2	5.2	5.2	4.3	4.3
	Crab	5.3	5.9	4.7	4.7	4.2
Width of track		37-51
