A-type Double Beam Hook Gantry Crane consists of A-type gantry frame steel structure, trolley, crane traveling mechanism, electrical system and other main components.

Outdoors operation gantry crane is also equipped with rail clamp, weight restriction device, limit device of each mechanism, as well as various safety devices in accordance with prescribed safety procedures of cranes.

Sometimes this type of gantry crane is equipped with rail clamp device, anchor device, anemometer, corrective devices, etc. as required.

A-type Double Beam Hook Gantry Crane is with hook used for handling and lifting materials in open storage, stock ground, railway freight station, ports and so on. It can also carry out some special operation by equipped with various special lifting tools.

Product Features

1. This gantry crane owns the advantages of low expense, high performance, easy operation and maintenance etc..

2. All hoist and crane movements are independent and can run simultaneously;

3. Excellent driving properties, intelligent control, smoothly moving.

4. End carriage equipped with anti-friction bearings, crane buffer block, derailment protectors;

5. Different designs so as to meet crane applications, flexible solutions for all lifting needs.

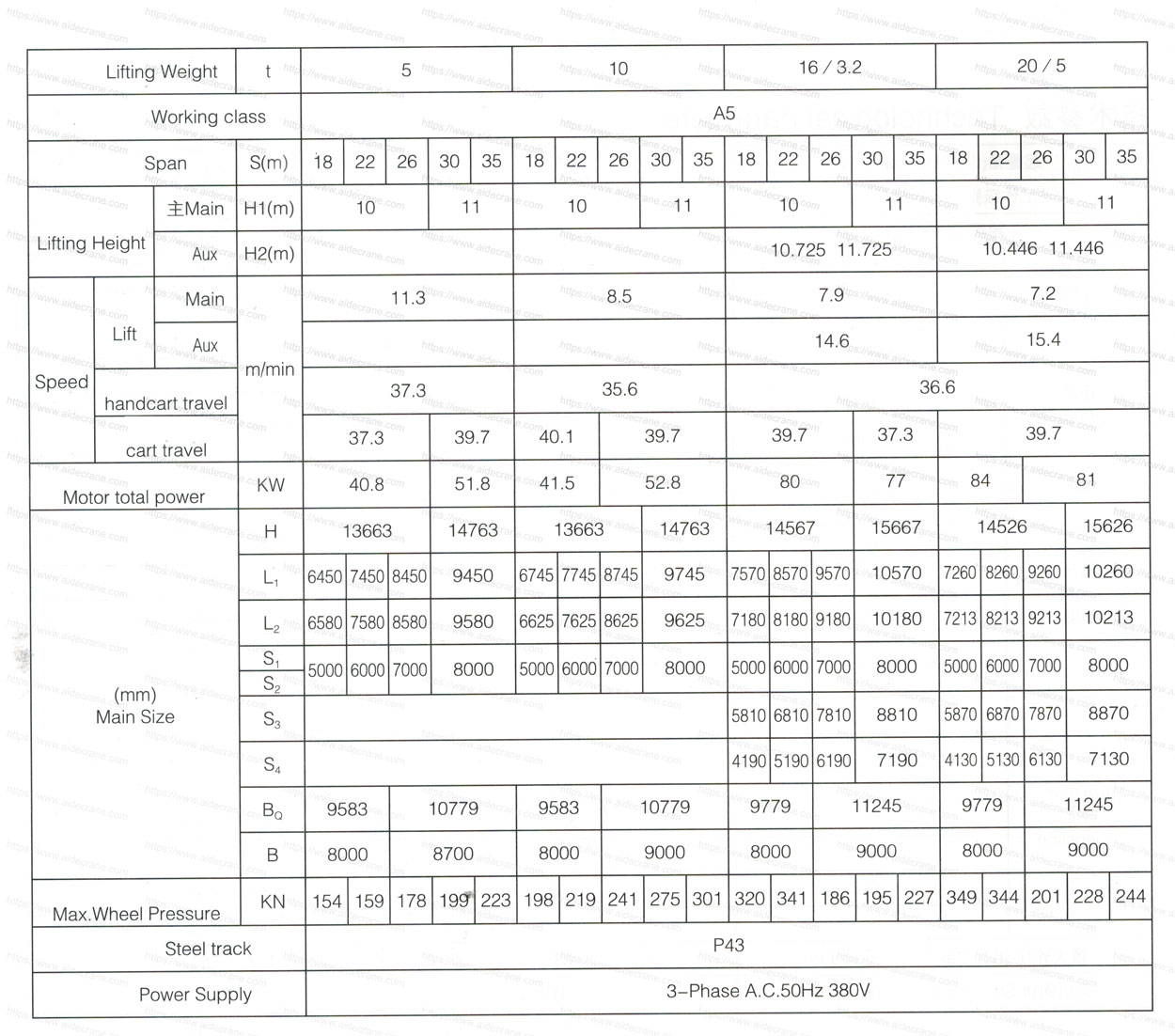

Product parameters
