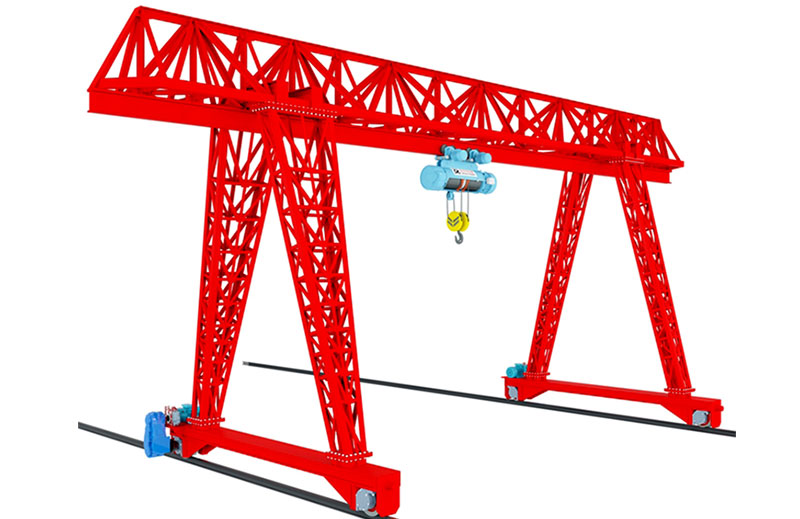

5 ton Trussed Type Electric Hoist Gantry Crane

Gantry Crane

Lifting Weigh : 5 ton

Span : 12-24 m

Lifting Height : 6/9 m

Working Class : A3

5 ton Trussed Type Electric Hoist Gantry Crane is used together with CD MD Model Electric hoists. It is a track travelling small and medium—sized crane. Its proper Lifting weight is 5 to 20 tons. Proper span is 12 to 30 meters, its proper working temperature is -20°C to 40℃.

This product is a regular crane widely used at open ground and warehouses to load, unload or grab materials. It has two controlling methods, namely ground controlling and room controlling.

Feature

1.Light weight, large load and strong wind resistance.

2.Simple structure, and easily operation and maintenance.

3. Widely used and easily installation.

Parameters

Lifting capacity			t	5
Span			m	12	16	20	24
Lifting height			m	6;9
Operating agencies	Running speed	Ground	m/min	20
		Driver's room		20 30 45
	Electric motor	Ground		ZDY21-4/0.8x2		ZDY22-4/1.5x2
		Driver's room		ZDY22-4/1.5x2		ZDY23-4/2.2x2
	Reducer			LD drive
	Wheel diameter		mm	φ270		φ400
Electric hoist	Model			CD1 MD1
	Lifting speed		m/min	8 0.8/8
	Running speed		m/min	20
	Electric motor	Rise		ZD41-4/7.5 ZDS10.8/7.5
		Run		ZDY21-4/0.8
Working system				A5
Recommended rail				P24		P38
Power supply				Three-phase communication 380V 50HZ
Crane quality		Ground	kg	6646	7430	10163	11931
		Driver's room	kg	6996	7780	10513	12281
Wheel pressure ≤			KN	37/42	40/46	44/50	48/54

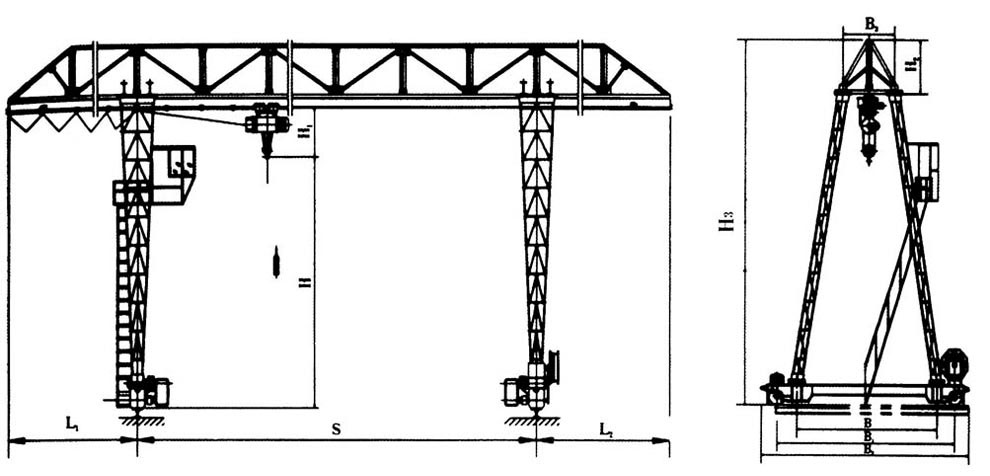

Basic size		L1	mm	2000	3000	4000	5000
		L2	mm	2000	3000	4000	5000
		H1	mm	1120
		H2	mm	1100	1250	1350	1500
		H3	mm	8265/11265	8285/11465	8485/11665	8486/1066
		B	mm	4500/5500		5500/6500
		B1	mm	5000/6000		6000/7000
		B2	mm	5400/6400		6500/7500
		B3	mm	1500
