Box Type 3-20t Electric Hoist Gantry Crane

Gantry Crane

Lifting Weigh : 3-20 t

Span : 12,16,20,24,30 m

Lifting Height : 6/9 m

Working Class : A3

Box Type 3-20 ton lifting capacity electric hoist single girder gantry crane is used together with CD MD model electric hoists. It is a track travelling small and medium-sized crane. Its proper lifting weight is 5 to 20 tons. Proper span is 12 to 30 meters and its proper working temperature is -20°C to 40°C.

This product is a regular crane widely used at open ground and warehouses to load, unload or grab materials. It has two controlling methods, ground controlling and room controlling.

The structure of this type gantry crane is simple and safe, easy to operate and improve working efficiency greatly. Single girder gantry crane only has one main beam so it it suitable for light duty lifting tasks. Before using it, certain operation rules and methods should be followed carefully.

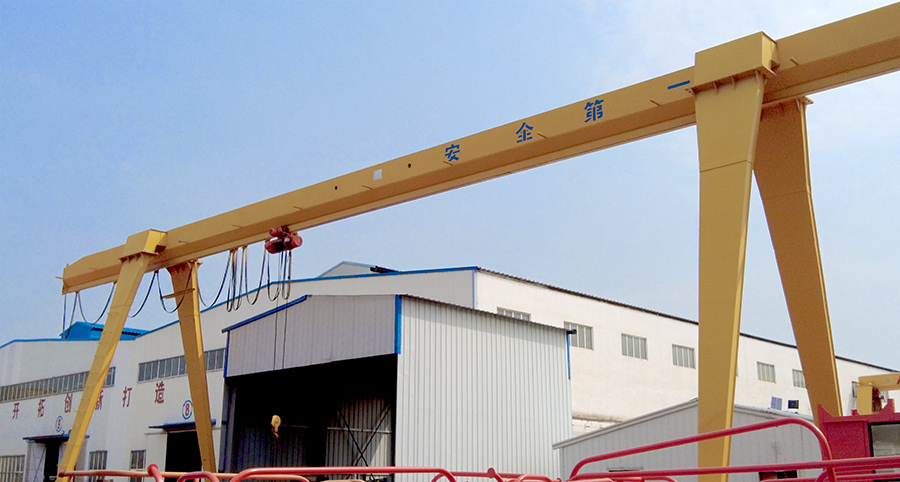

DJI_0639

Features

1. Simple and compact structure, steady performance.

2. Easy to install and high efficiency.

3. Overload, low voltage protective device are equipped.

4. Pendent control and wireless remote control.

5. Easy maintenance.

Parameters

Capacity			T	3	5	10	16	20
Span			m	12,16,20,24,30
Operational method				Pendent Line With Press Button /Cabin/ Remote
Speed	Lifting		m/min	8 ,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5
	Cross traveling			20	20	20	20	20
	Long traveling	Ground		20	20	20	20	20
		Cabin		20, 30,45	20, 30,40	30,40	30,40	30,40
Motor	Lifting		Type /kw	ZD41-4/4.5 ZDS1-4/0.4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
	Cross traveling			ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.82	ZDY121-4/0.82	YZD-4/0.84
	Long traveling	Ground		ZDY21-4/0.82 ZDY21-4/1.52	YZY22-4/1.52 YZR132M2-6/3.72	YZR22-4/1.52	YZR160M1-6/6.32 YZR160M2-6/8.52	YZR160M1-6/6.32 YZR160M2-6/8.52
Electric hoist			Model	CD1/MD1	CD1/MD1	CD1/MD1	CD1	HC
Lifting height			m	6,9,12,18,24,30
Working duty				A3
Power supply				380V 60HZ 3phase AC (According to your demand )
