Product Introduction

Single beam gantry crane is a common lifting equipment, widely used in industrial production, warehouse storage and logistics and other fields. Its unique design structure and efficient lifting capacity make it a modern one of the indispensable equipment in industry.

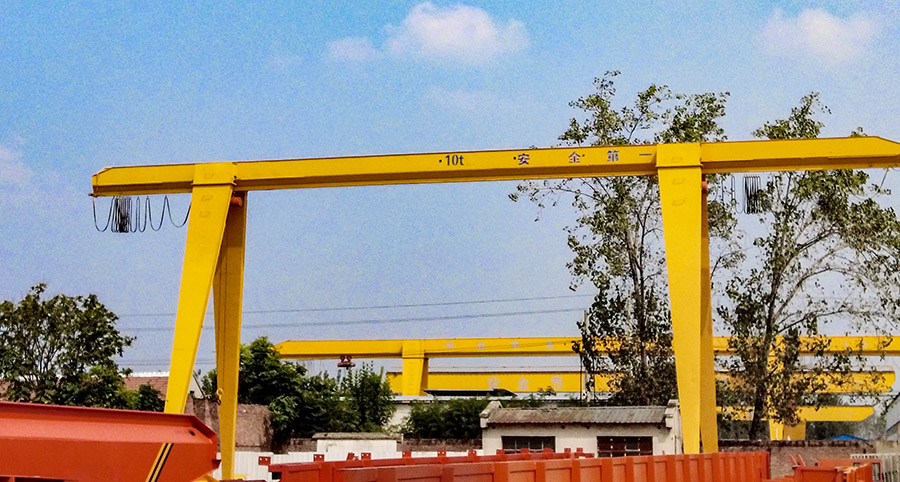

MH gantry crane with electric hoist is a middle and small size lifting equipment which runs at rails. It is mainly composed of gantry (girder, leg, lower cross beam, etc.), hoisting mechanism, travelling mechanism and electric control part. With the electric hoist as hoisting mechanism, it runs along the lower flange of the I-steel of the girder. The girder is of box-shape structure and truss structure. The former boasts good techniques and easy fabrication,and the latter is light in dead weight and strong in wind resistance. The complete machine features light dead weight, simple structure and easy installation and maintenance, so that it is applicable to outdoor operational sites of medium and small lifting load for general handling such as factories and mines, freight yards and warehouses. It is prohibited to operate in the environment with inflammable, explosive and corrosive gas.

Main components and their functions

1. Upper beam: The upper beam is the main beam of the crane, which bears the weight of the lifted object and is used for lifting operations by the crane.

2. Lower beam: The lower beam is the support beam of the crane, which plays a role in supporting and stabilizing the crane.

3 Outriggers: The outriggers are used to support the crane, increasing its stability and load-bearing capacity.

4. Lifting mechanism: The lifting mechanism is the core component of the crane and is driven by electric motors and gears. It is composed of devices, brakes, etc. to realize lifting operations.

5. Control system: The control system is used to control the operation of the crane, including lifting, walking and rotation functions which provide comprehensive operational control.

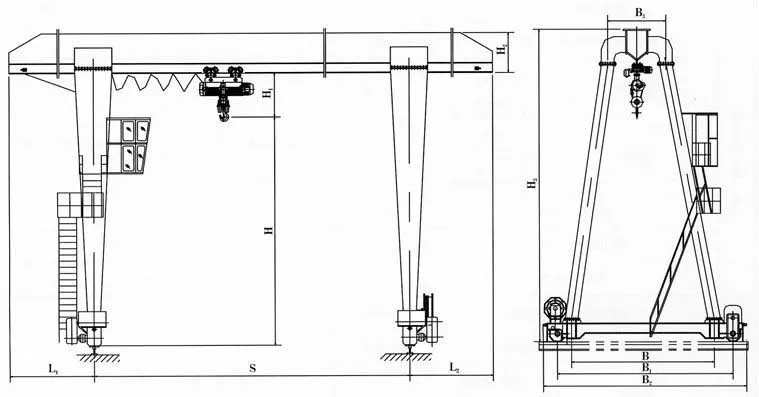

Product parameters

It has three operation modes: ground handle, wireless remote control and cab.

Product Advantages

1. Cut Down your cost in building of plant and workshop;

2. Improve your production efficiency;

3. Be suitable for indoor warehouse and outdoor usage;

4. Reduce daily maintenance;

5. Safety with high performance.

Before using a single-girder gantry crane, a comprehensive inspection and trial operation should be carried out to ensure all functions are normal.
