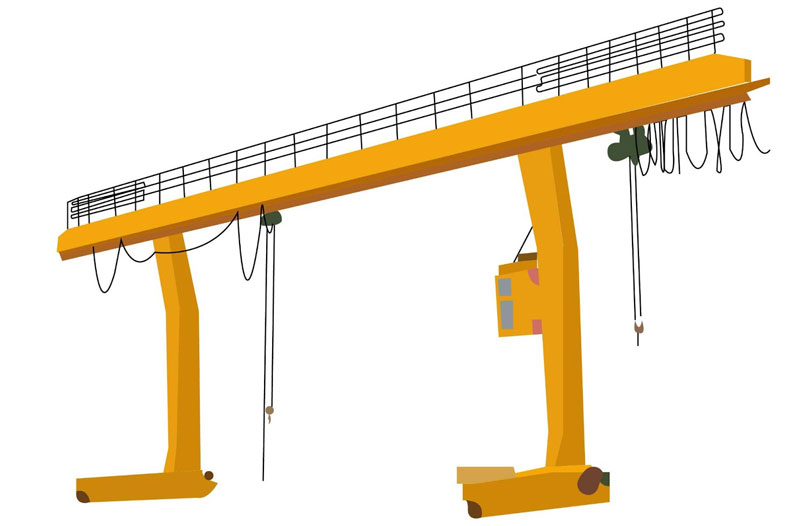

Here is some introduction of the L type gantry crane.

L gantry crane is mainly composed of gantry frame, crane crab, trolley travelling mechanism, cab and electric control system.

The gantry is of a box-shape structure. The crab adopts vertical reaction wheel when the lifting load is below 20 ton, and horizontal reaction wheel when above 20 ton to run at the girder side. The girder is of single-girder bias track and the leg is L-shaped, so that the lifting space is large and the spanning ability is strong, making it easy to covey articles from the span to under the jib. The closed cab is employed for operation, where there are adjustable seat, insulating mat on the floor, toughened glass for the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and inter-phone which can be furnished as required by users.

Applicable places

1. General loading, unloading, hoisting and handling work in open-air freight yards, shipping terminals, railway freight station warehouses and other places;

2. Construction industry, warehousing industry, transportation industry, machinery manufacturing industry and small power generation industry, etc., are widely used in logistics and transportation operations;

3. It can also be adapted to a variety of spreaders for special operations.

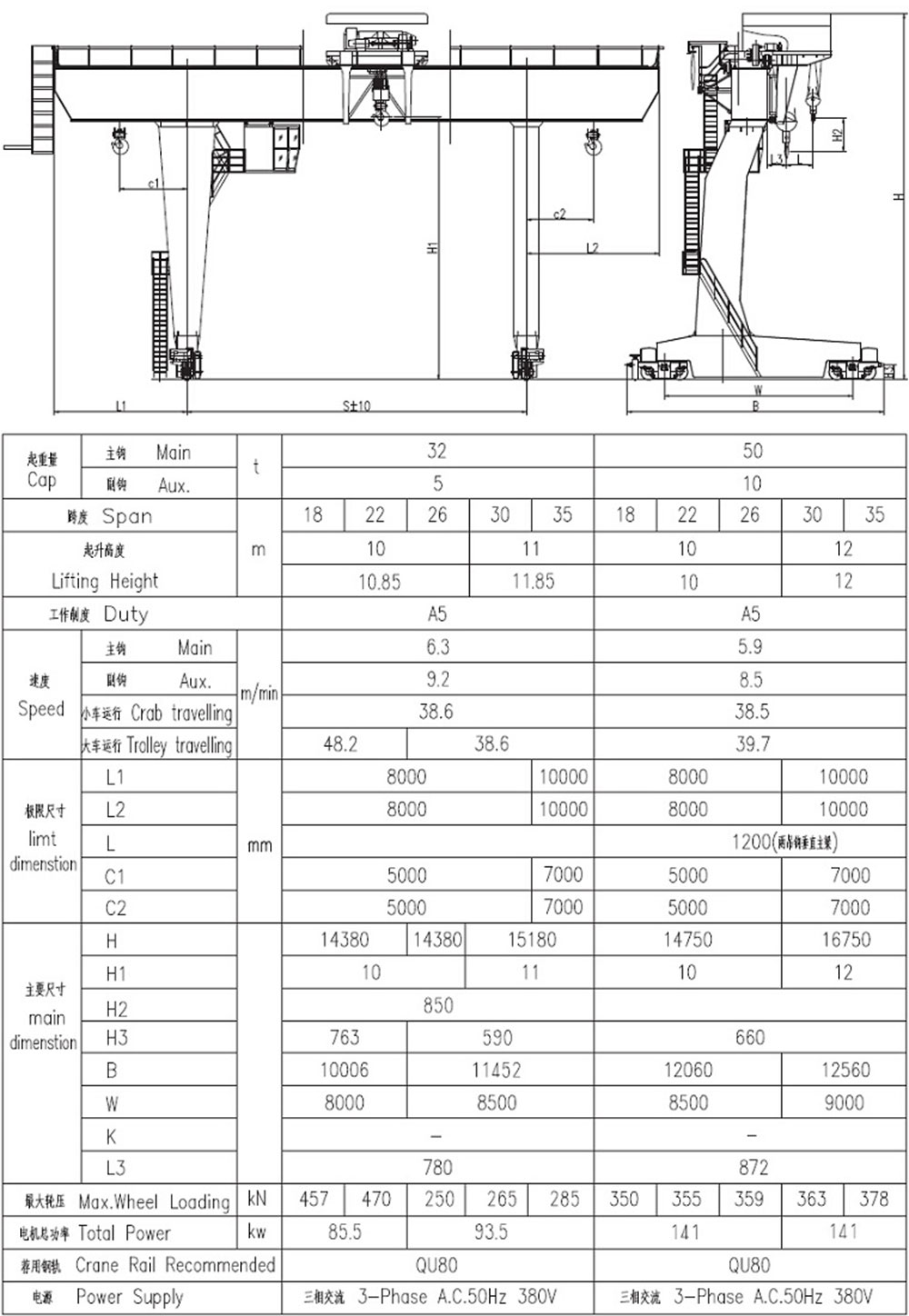

Product parameters
